neo:4

Ever closer to perfection

Imagine video that fits seamlessly into your life, enhancing every experience with a picture that's as beautiful as its design. It's all about you and your entertainment, delivering an experience that's both effortless and exciting.

neo:4

P8-HDBT-L-FFMS44-22-KIT

Available only through select professional installers
Call us on 01202 413 610 (UK), (858) 748-8250 (US) or email [email protected] for more information

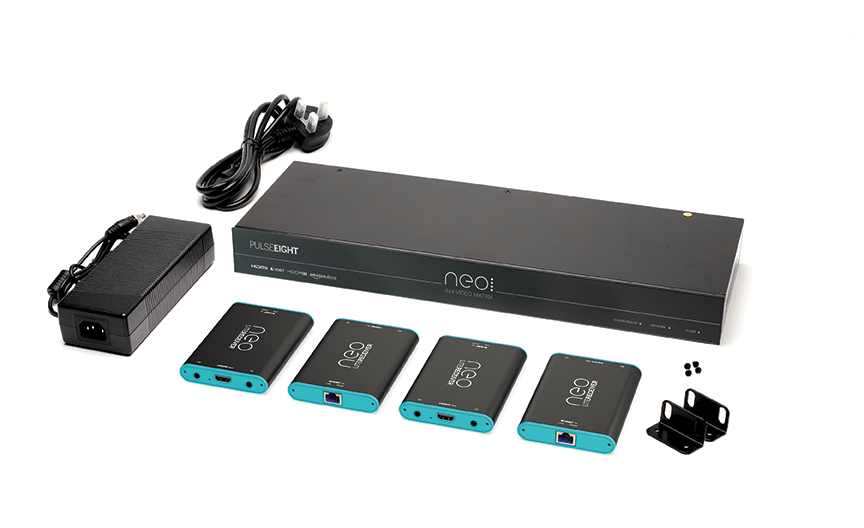

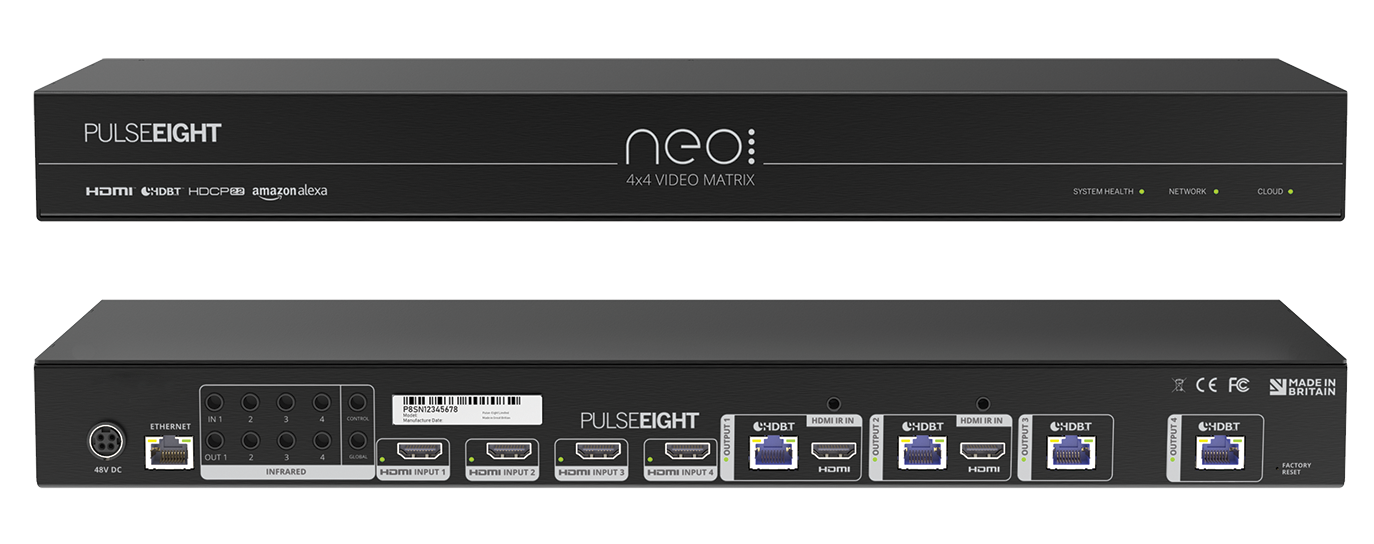

Our flagship 4x4 HDBaseT matrix with 2 mirrored HDMI® ports, includes 4 HDBaseT 70m Class B PoH receivers.

Core Features
  • Ultra HD 4K Video Transmission (up to 340Mhz), 1080p, 3D
  • Full HDCP 2.2 Support
  • 4x HDMI® Inputs
  • 4x HDBaseT Class B Outputs
  • 2x HDMI® Outputs (Mirrored)
  • 4x neo:Lite PoH Receivers Included
  • HDMI-CEC Bi-Directional Control
  • Bi-Directional IR Control
  • Responsive Web Interface
  • Automatic EDID Management
  • 5-year Warranty
  • Built In Britain
Key Technologies:
HDBaseT HDMI Dolby Labs HDCP 2.2 Support libCEC Built In Power over HDBaseT Capable UltraHD 4K Support
Compatible Control System Drivers:
Bitwise (Leviton) Control 4 Crestron Elan g! neets RTI Savant Simple Control URC
HDBaseT Lite 70m at 1080p, 40m at 4K

Our neo matrix range represents the culmination of many years of hardware and software development at Pulse-Eight. Our refined HDBaseT video matrix solutions ensure they offer you exactly what you need whether you're a professional AV Installer or a residential user.

MatrixOS

At the core of neo is MatrixOS the beating heart of our 340Mhz video processing unit. Providing you with instant access to all of your connected source devices in stunning Ultra HD 4K, 1080p or 3D. This powerhouse helps to create a "just works" solution, from dynamically generating EDIDs (to ensure the best video quality to every TV) right through to handling software updates for the HDBaseT link. With one goal in mind. Giving you the best possible video distribution system in the world.

Contextual IR

4 in, 4 out, that's 16 possible combinations of your video. Historically matrixes have offered remotes with 8 or 16 buttons, requiring multiple presses to get video to the TV your watching. We thought this was an odd solution, given you already known which room you are in, so should the matrix! Our designers did away with this old concept and instead created Contextual IR, this reduces the number of buttons to just 4, one for each possible input. Whatever room your in, select 1, 2, 3, 4 and watch that source instantly.

HDMI-CEC

But then we asked, why use IR at all? Most TVs now support CEC, we are world experts in CEC technology with our libCEC and USB-CEC Adapters, so we've baked that technology into neo. Now you can just use your normal TV remote and press the "Source" key, each of your input devices will be listed and just select the one you want and the matrix will route the video automatically, even if the source does not support CEC itself

If however, the source device does not support CEC, then you can continue to control it via your remote control as neo will automatically relay the necessary messages to your source device.

Instant On

In the UK, Sky (one of the main satellite TV providers) recently added CEC support, the way they did it was pretty interesting (simply press the "Sky" button and your TV turned on and so did the Sky+ HD box) and it gave us an idea, we could do this with neo. With Instant On, press the Sky button in any room and we will detect this, turn the TV on and switch the video path to the Sky+ HD box.

But we go one step further, if you have more than one Sky+ HD box connected to neo then we will intelligently detect which Sky+ HD box is not in use and route this to your TV

Don't worry if you are not in the UK, Instant On can be customised for just about any collection of source devices

Web Interface

We want to give you the best experience possible, to do this, we think it's important you can access neo from any device, be it mobile, tablet or desktop PC and in any browser. We've done this with our responsive design, so it works with you and not the other way round. Our web interface is built directly on top of our REST/API, this means that whatever you can do on your phone, you can get your control system to do also and vice versa. There are no hidden tricks or special codes that require a magic moon dance to work. All of our documentation is free and available on our monitoring site.

Read more about Web App Control...

Monitoring

It's important that you get video all the time, to help us do that every neo professional matrix keeps in contact with our cloud management service. You can tell if this is working with the Monitored LED on the front of the matrix. If you get stuck, your installer or yourself can log into our cloud portal and see helpful diagnosis information (if you let them), fix problems remotely or tell you where you may have gone wrong in the installation. All of this is free of charge. If neo has a problem, we get alerted too and we can get in contact to arrange a hardware replacement or give you a step by step guide to get you up and running again.

See it in action from ISE 2016:





Download Format
27/01/2023
Download Format
23/09/2024
Download Format
23/09/2024

Just Ask...

With the neo Alexa skill enabled on your Amazon Echo or Dot you can use commands to turn a certain TV on or off or to switch source devices. Imagine walking out of the lounge at night to continue watching TV in bed, you can simply say 'Alexa, turn off lounge' then 'Alexa, turn on Sky Q in bedroom' and without having to lift a finger the matrix will make your requests happen, including turning on the bedroom TV and switching to the input source with one command.

Additional Features

Smarter TV

What you see is what you control, instead of complex remote controls, use your original TV remote

Contextual IR

4 in, 4 out, that's 16 possible combinations of your video. Historically matrixes have offered remotes with 8 or 16 buttons, requiring multiple presses to get video to the TV your watching. We thought this was an odd solution, given you already known which room you are in, so should the matrix! Our designers did away with this old concept and instead created Contextual IR, this reduces the number of buttons to just 4, one for each possible input. Whatever room your in, select 1, 2, 3, 4 and watch that source instantly.

Rack mountable

Small and lightweight, can be mounted into almost any rack type. Matching your existing equipment so it seamlessly blends in.

Monitoring

It's important that you get video all the time, to help us do that every neo professional matrix keeps in contact with our cloud management service. You can tell if this is working with the Monitored LED on the front of the matrix. If you get stuck, your installer or yourself can log into our cloud portal and see helpful diagnosis information (if you let them), fix problems remotely or tell you where you may have gone wrong in the installation. All of this is free of charge. If neo has a problem, we get alerted too and we can get in contact to arrange a hardware replacement or give you a step by step guide to get you up and running again.

Instant On

In the UK, Sky (one of the main satellite TV providers) recently added CEC support, the way they did it was pretty interesting (simply press the "Sky" button and your TV turned on and so did the Sky+ HD box) and it gave us an idea, we could do this with neo. With Instant On, press the Sky button in any room and we will detect this, turn the TV on and switch the video path to the Sky+ HD box.

But we go one step further, if you have more than one Sky+ HD box connected to neo then we will intelligently detect which Sky+ HD box is not in use and route this to your TV

Don't worry if you are not in the UK, Instant On can be customised for just about any collection of source devices

Web Interface

We want to give you the best experience possible, to do this, we think it's important you can access neo from any device, be it mobile, tablet or desktop PC and in any browser. We've done this with our responsive design, so it works with you and not the other way round. Our web interface is built directly on top of our REST/API, this means that whatever you can do on your phone, you can get your control system to do also and vice versa. There are no hidden tricks or special codes that require a magic moon dance to work. All of our documentation is free and available on our monitoring site.
