Ultra Receiver approved by Steinway Lyngdorf

Available only through select professional installers
Call us on 01202 413 610 (UK), (858) 748-8250 (US) or email [email protected] for more information

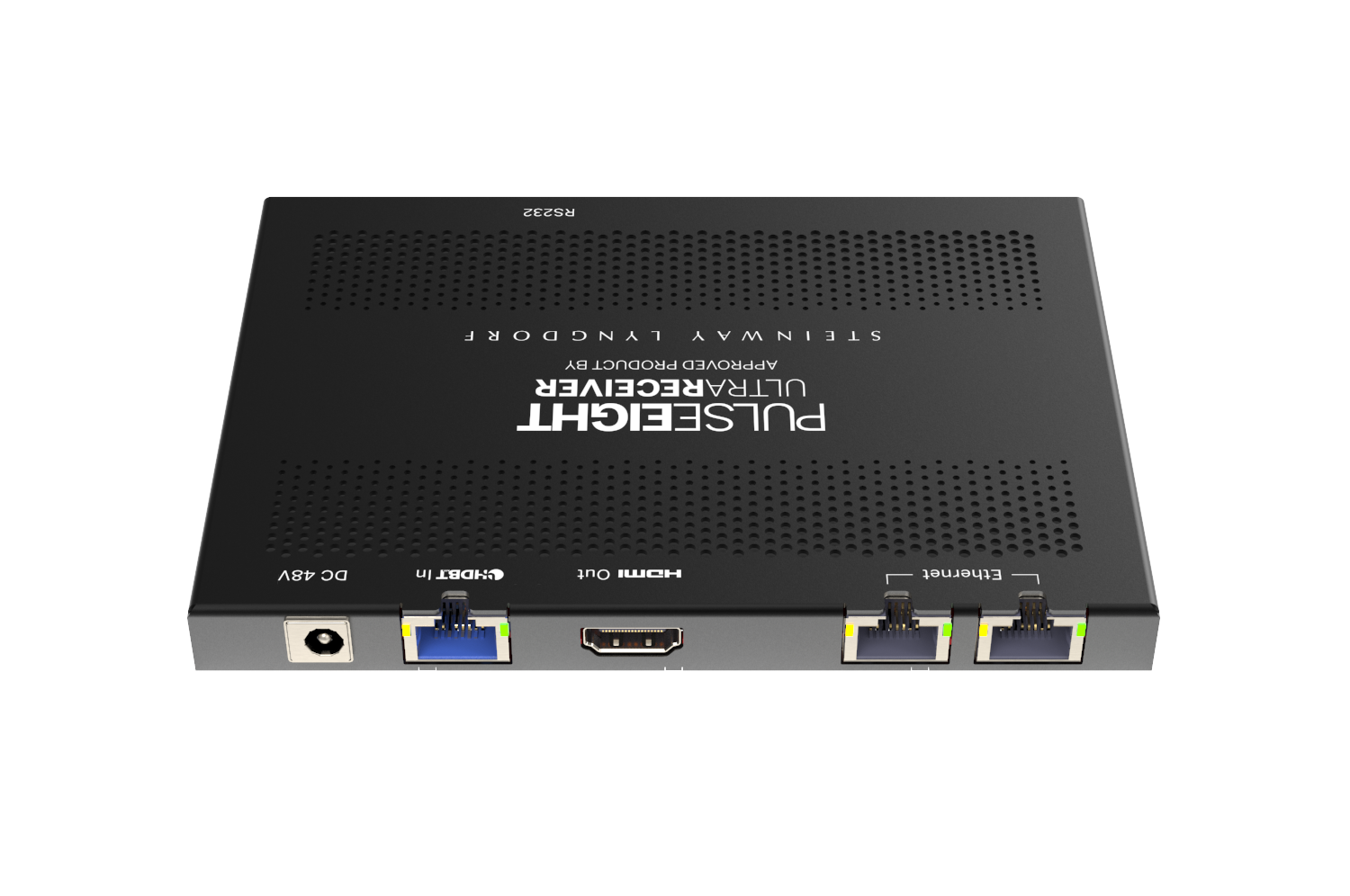

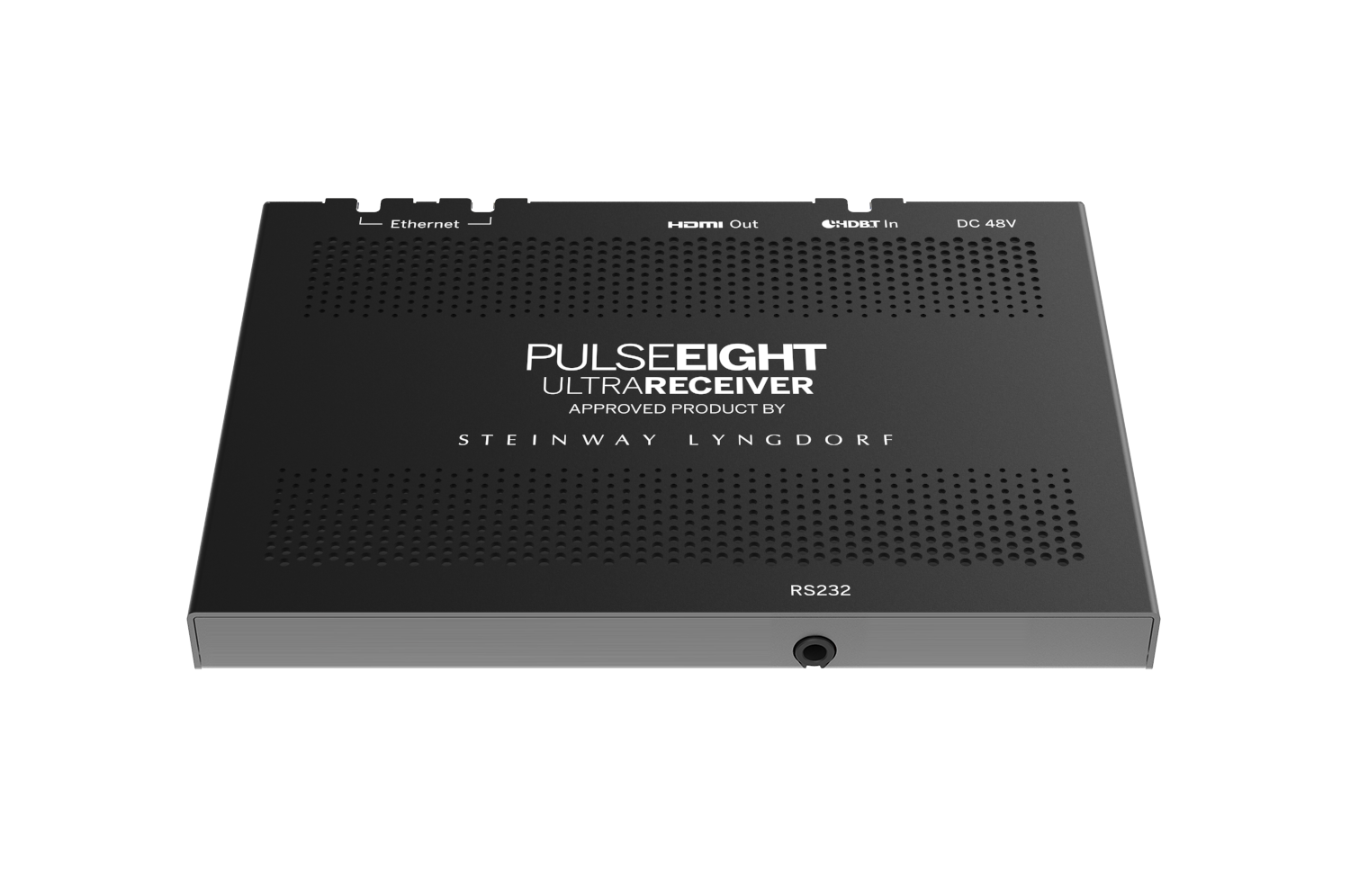

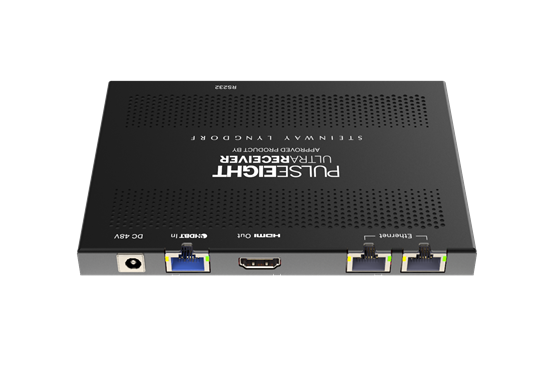

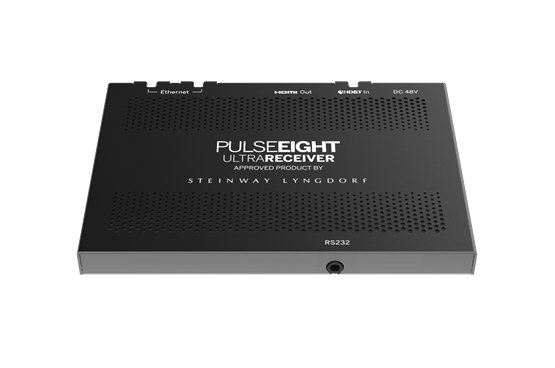

Pulse-Eight Ultra Receiver product, officially approved by Steinway Lyngdorf to work with the Steinway & Sons P300 immersive sound processor.


Manufacturer: Pulse-Eight
SKU: P8-HDBT2-U-RX-SLA

HDR and 4K/60 4:4:4 video content requires data rates exceeding 10 Gbps and up to 18 Gbps – a significant challenge for extending signals over HDBaseT.



The Pulse-Eight Ultra Receiver (P8-HDBT2-U-RX-SLA) supports the most advanced HDBaseT transmissions available today, supporting HDMI® 2.0 (18Gbps) extension when utilising Display Stream Compression (DSC), a visually lossless video compression technology that applies extremely light line-by-line compression that causes no latency. DSC technology is the only HDBaseT “4k60 Type-A” compliant method for enables transmission of HDR and 4K/60 4:4:4 over a single category cable while ensuring the most pristine image quality with zero-latency.



The Pulse-Eight Ultra Receiver (P8-HDBT2-U-RX-SLA) is a HDBaseT “4k60 Type-A” compliant receiver that has been has been tested and approved by Steinway Lyngdorf to work flawlessly with the P300 processor at the highest rates achievable, enabling long-distance transmission (100m/328ft) of HDMI2.0 video (4K, 60Hz with 4:4:4 chroma encoding) and 100Mbps ethernet over a single category cable.



The Pulse-Eight Ultra Receiver is, at only 13mm high, the slimmest HDBaseT Class C extension solution on the market, perfect for a discreet installation behind ultra-thin TVs.



KEY FEATURES

• The “Approved by Steinway Lyngdorf” HDBaseT Receiver solution for the P300 sound processor

• An ultra thin 13mm depth enclosure

• Extend 4K/1080p up to 100 metres over a single Cat5e/6/7 cable

• Wall Mountable

• Ethernet 10/100 Connection

• Serial RS232 via 3.5mm

• HDCP 2.2 Compliant

• DSC support - for HDR and 4K/60 4:4:4 over HDBaseT link



*Please note, this product requires a transmitting device to work (i.e. Ultra Transmitter/P300 Processor - sold separately)
