Key Technologies:
HDBaseT Lite 70m at 1080p, 40m at 4K

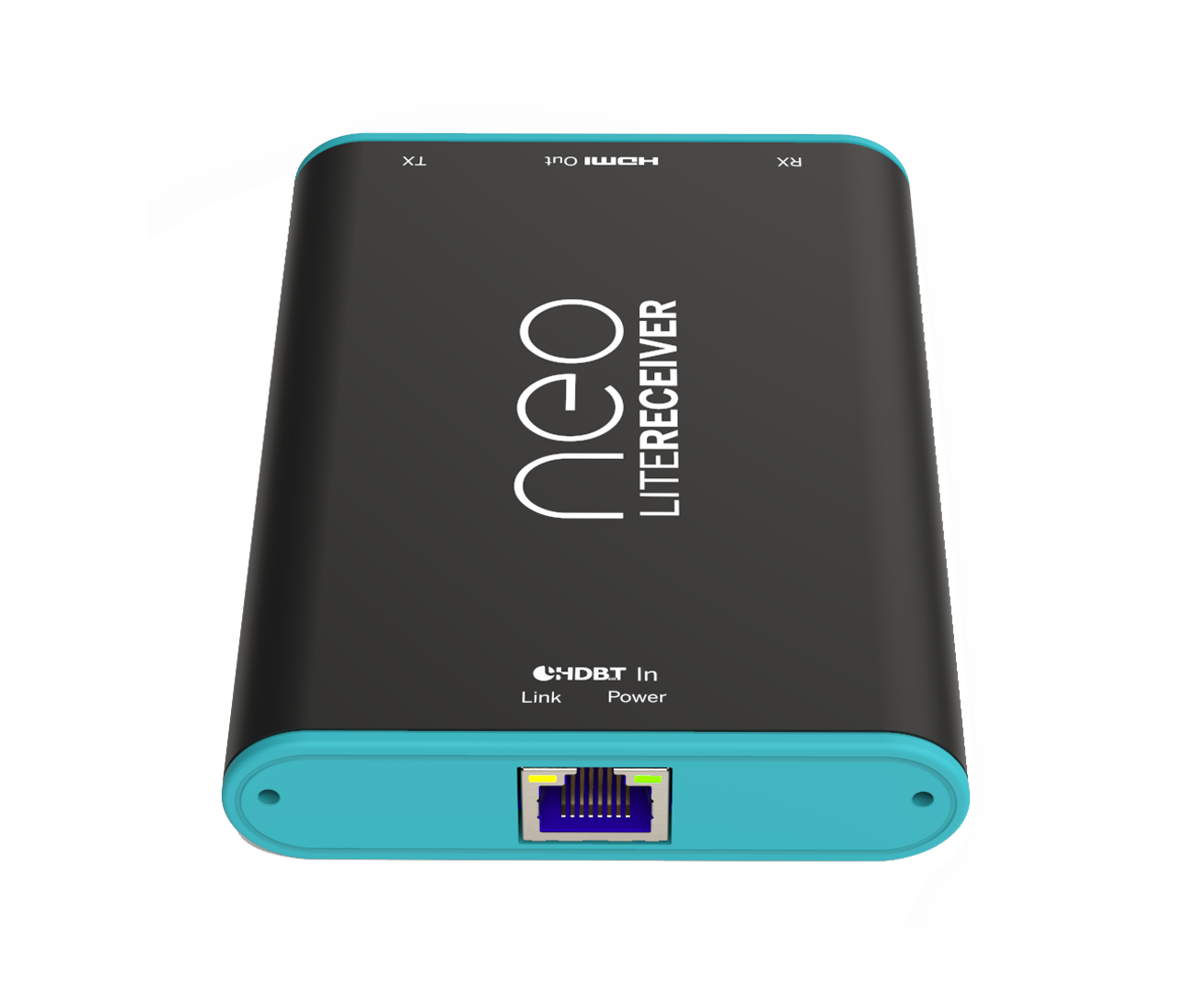

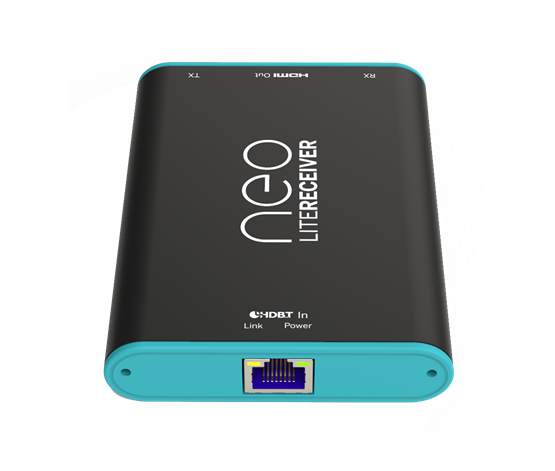

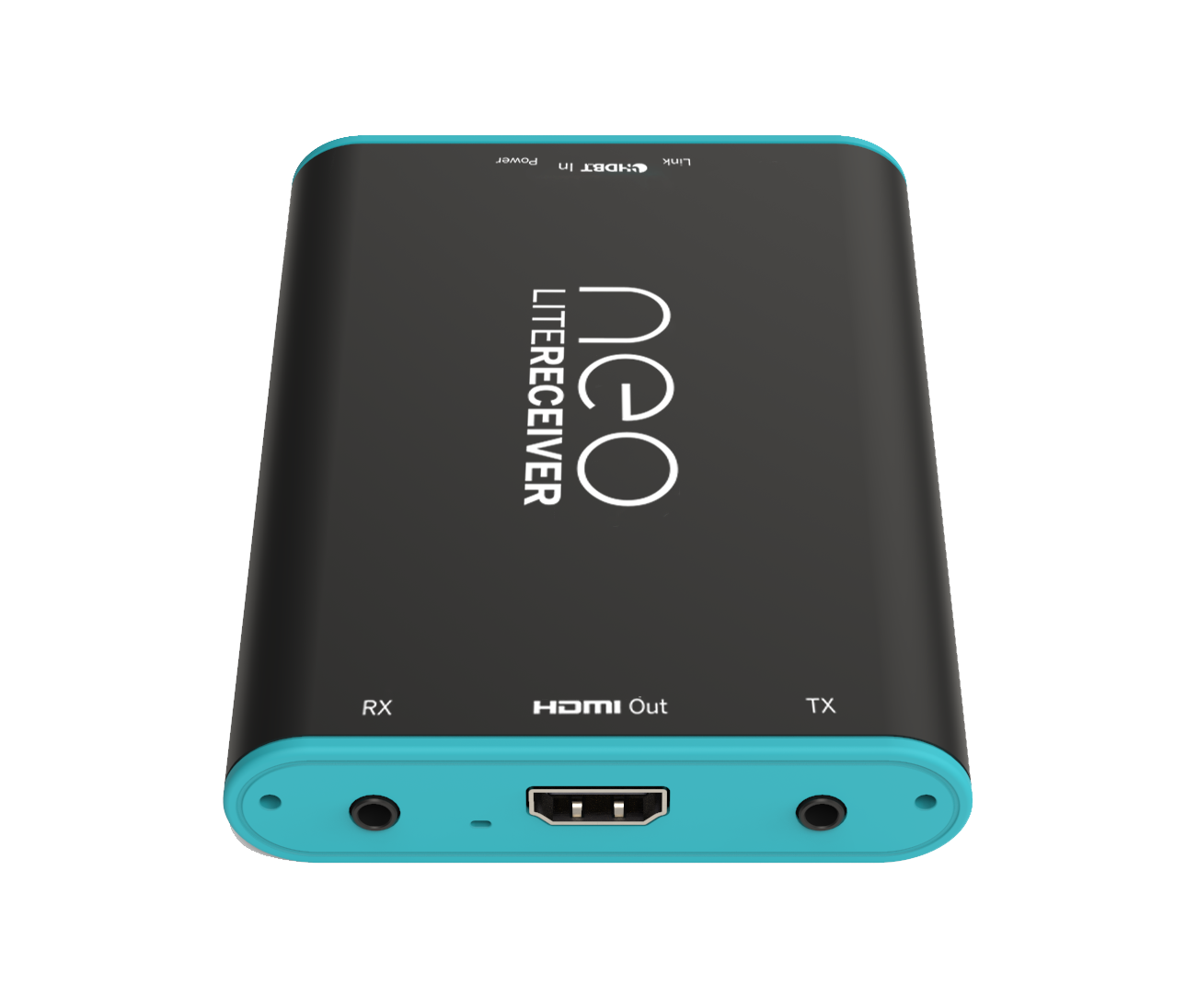

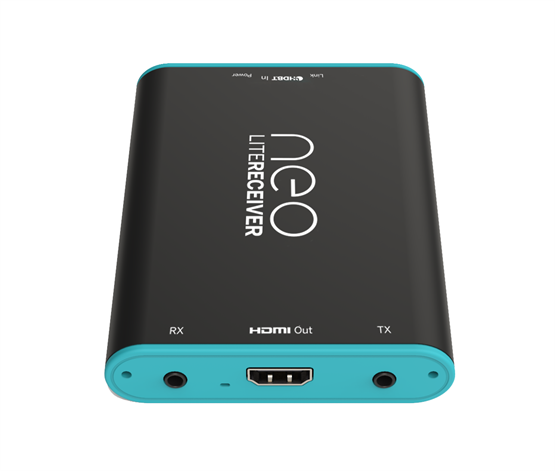

neo:Lite Receiver

Availability: In stock

USD $228.36

Featuring Class B HDBaseT technology for projects that demand all the benefits of HDBaseT transmission, the neo:lite Receiver can extend 1080p up to 70 metres and 4K up to 40 metres.

Supporting transmissions of 1080p@60Hz and 36bit deep color, HD audio, power over HDBaseT (PoH) remote power from transmitter to receiver and bidirectional control via IR and RS232 all along a single Cat5e/6 cable.

Manufacturer: Pulse-Eight

This product is designed to work with the neo:Lite Transmitter or a neo Matrix and requires a PoH (Power over HDBaseT) supply to operate correctly.


  • HDCP 2.2 compliant
  • Can extend 4K up to 40 Metres and 1080p to 70 Metres over Cat5e/6/7
  • Wall Mountable
  • Low Power
  • UltraHD 4K Transmission, 1080p@60Hz/36-bit, 720p, VGA-WUXGA formats
  • Bi-Directional Infra-Red Transmission
  • Full HDMI® Audio support
  • PoH (Power over HDBaseT)
*Please note, this product requires a transmitting device to work (i.e. neo:Lite Transmitter, neo matrix or neo splitter - sold separately)
